Commercial Air Filters
 |
Disposable Throw Away
Air Filters
|
We've never
compromised quality . . . for any reason. New
& Improved "PTA" Disposable Air Filters
FEATURES...
To enhance our PTA disposable filters, Holt Filters will start incorporating
PolyStrand® media, a new engineered poly coated fiber technology within
our standard and special sizes. The new engineered fiber enhances airflow
and reduces initial resistance for increased service life. This new media
has increased fiber density which enhances particle size efficiency. This
new poly coated fiber technology is softer to the touch and safer to handle
than standard fiberglass.
FEATURES
INCLUDE:
- Fibers encapsulated in a polyester coating
- Softer to the touch & safer to handle
- Increased fiber density
- Enhanced particle size efficiency per independent tests
This new & improved fiber technology is being launched immediately.
During the transition of this new PTA media, you may receive some of the
current and new fiber technology product as we ramp up. If you should
have any questions about this new construction method, please contact
us.
APPLICATIONS...
Our
disposable panel filter can be used as a direct replacement
for filters supplied in original equipment. Standard sizes are
available in 1” and 2” depths to accommodate most filter tracks.
Any application can be accommodated with our special sizes, available
in 1/2”, 1” and 2” depths..
OPTIONS...
Available
with tape around the filter frame for added protection against moisture
and/or support bars for added rigidity.
FEATURES
& BENEFITS
- Progressively Dense fibers encapsulated in a polyester coating
- Metal Grids on Air Entering and Air
Leaving sides
- Heavy-duty Construction
- Thermally Bonded
SPECIFICATIONS...

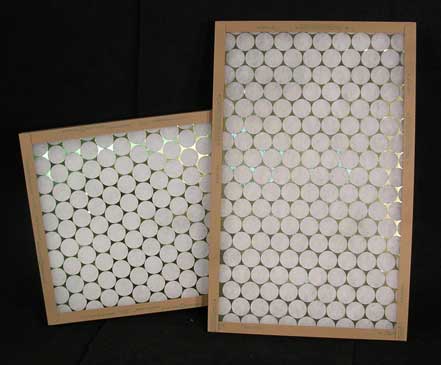

The standard size filter element
shall be constructed of a single piece of heavy-duty, one piece craftboard
frame. The two metal grids shall be thermally bonded internally to the
frame. The metal grids shall be 28 gauge and provide 82% open area. All
corners shall be closed and sealed. The fiber filter media shall be coated
with a non-toxic, non-flammable, odor free adhesive. The fiber media shall
be constructed in a progressively dense fashion from air entering to air
leaving side. The fiber media shall have a skin backing on the air leaving
side. Our disposable panel filters shall be rated to withstand temperatures
up to 180 Fahrenheit. All filters shall be rated Class 2 under U.L. std.
900.
Performance |
NEW |
Regular |
Difference |
Data |
PTA |
Poly |
New
PTA |
| 20x20x1:
Initial Resistance (295 FPM) |
.10"
w.g. |
.19"
w.g. |
48%
Lower Resistance |
| 20x20x2:
Initial Resistance (295 FPM) |
.14"
w.g. |
.26"
w.g. |
47%
Lower Resistance |
|
|
| E1
(%) Initial Efficiency 0.30 - 1.0 um |
8 |
5 |
60%
Greater |
| E2
(%) Initial Efficiency 1.0 - 3.0 um |
30 |
18 |
67%
Greater |
| E3
(%) Initial Efficiency 3.0 - 10.0 um |
31 |
16 |
94%
Greater |
Click
here for more details
Disposable Throw Away
Air Filters
|
